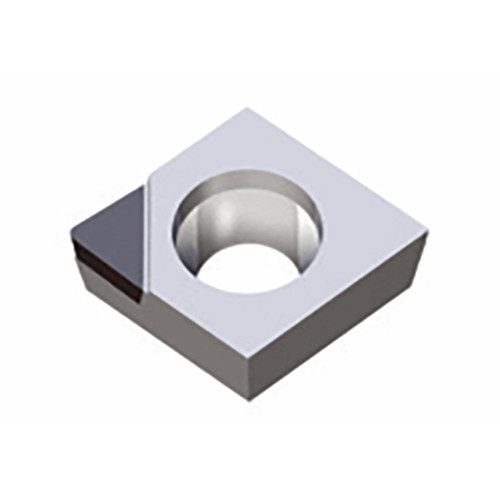

Taegutec CCGW 120408 LN-7 TD810

Applicable Material:, Aluminum / Non-Ferrous Materials, Grade: TD810
Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.1 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 3 mm
Cutting Edge Length (L): 12.9 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.3 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: PCD
Body Material: Carbide
Coating: PCD
Unit: M
