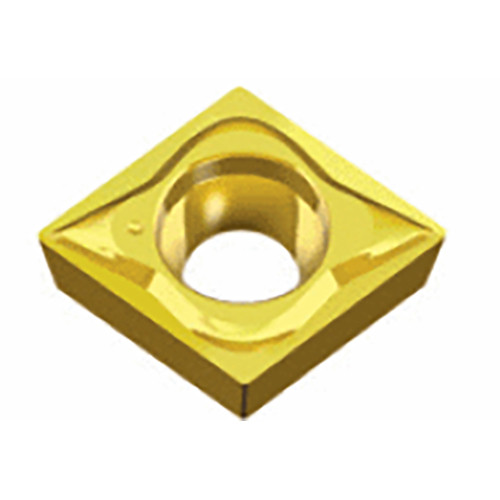

Taegutec CCMT 060204 FA PV3010

Description

Positive 80° Rhombic inserts for super-finishing of steels, stainless steels and exotic materials with 7° clearance angle and excellent chip control

Weight	0.0017 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Cast Iron, Fixing Hole Diameter (D1): 2.8 mm Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.2 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 6.3 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.15 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Cermet Body Material: Carbide Coating: TiN Unit: M Grade: PV3010
