Taegutec CCMT 060204 FG TT9225

Description

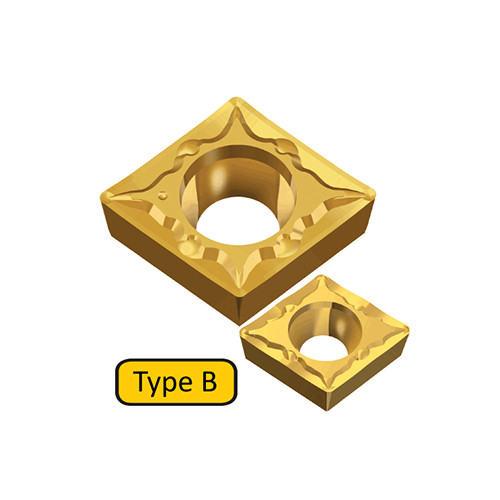

Positive 80° Rhombic inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control

Weight	0.0021 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Fixing Hole Diameter (D1): 2.8 mm Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.3 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 6.3 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.15 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al203+TiCN Unit: M Grade: TT9225
