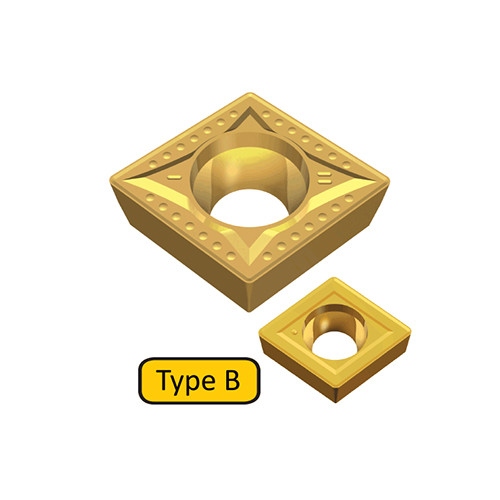

Taegutec CCMT 060208 MT TT7015

Applicable Material:, Cast Iron, Fixing Hole Diameter (D1): 2.8 mm
Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.7 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 2 mm
Cutting Edge Length (L): 6.3 mm
Min. Turning Feed (ft(min)): 0.13 mm/rev
Insert Thickness (S): 2.38 mm
Max. Turning Feed (ft(max)): 0.3 mm/rev
Inscribed Circle Diameter (IC): 6.35 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3
Unit: M
Grade: TT7015
