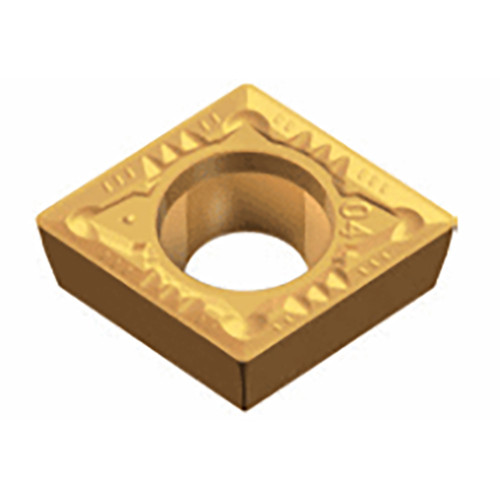

Taegutec CCMT 09T302 FM TT8115B

Description

Positive 80° Rhombic inserts for medium and semi-finishing machining of steels & stainless steels with low cutting force & 7° clearance angle

Weight	0.0036 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8115B Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.2 mm Depth of Cut Maximum (APMX): 2 mm Cutting Edge Length (L): 9.7 mm Min. Turning Feed (ft(min)): 0.07 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
