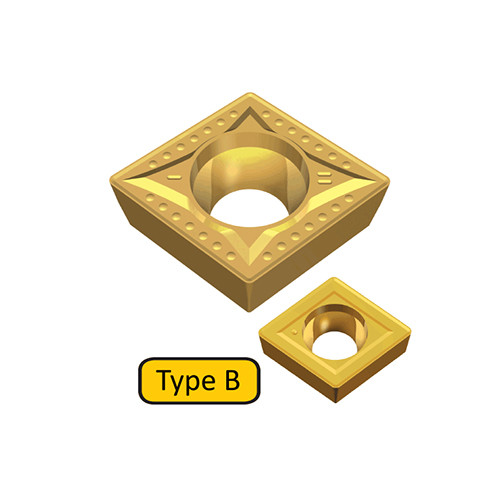

Taegutec CCMT 09T308 MT CT3000

Applicable Material:, Steel, Stainless Steel, Cast Iron, Fixing Hole Diameter (D1): 4.4 mm
Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 1 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 3.5 mm
Cutting Edge Length (L): 9.7 mm
Min. Turning Feed (ft(min)): 0.13 mm/rev
Insert Thickness (S): 3.97 mm
Max. Turning Feed (ft(max)): 0.3 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: Cermet
Body Material: Carbide
Coating: Cermet
Unit: M
Grade: CT3000
