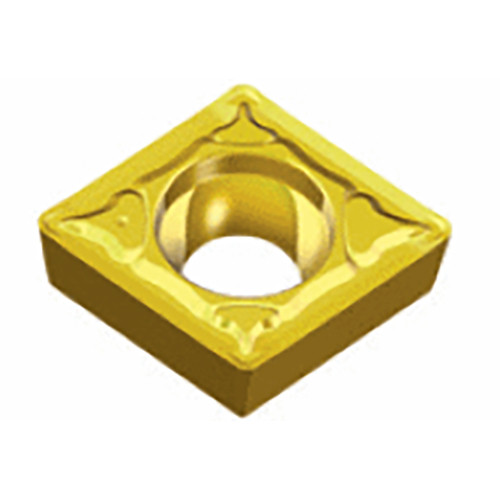

Taegutec CCMT 09T308 PC TT5100

Description

Positive 80° Rhombic inserts for medium applications of wide variety of materials with 7° clearance angle & low cutting force

Weight	0.0046 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Grade: TT5100 Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 9.7 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.28 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
