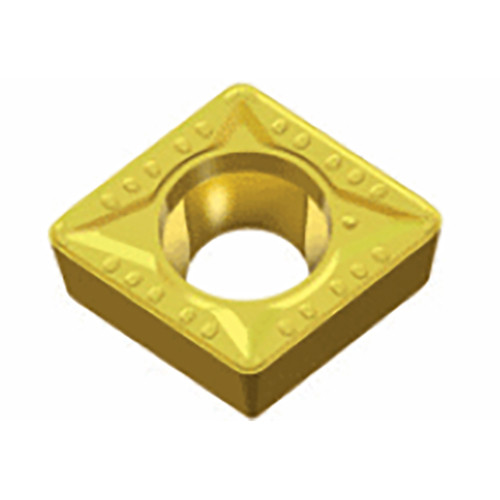

Taegutec CCMT 09T308 WT TT5100

Applicable Material:, Steel, Stainless Steel, Fixing Hole Diameter (D1): 4.4 mm
Application:, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 0.7 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 3 mm
Cutting Edge Length (L): 9.7 mm
Min. Turning Feed (ft(min)): 0.1 mm/rev
Insert Thickness (S): 3.97 mm
Max. Turning Feed (ft(max)): 0.4 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
Grade: TT5100
