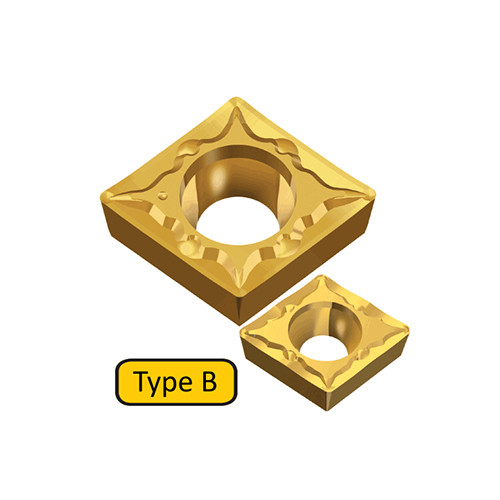

Taegutec CCMT 120408 FG TT8080

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Fixing Hole Diameter (D1): 5.5 mm
Application:, Ext 90° App 80° Diamond, Ext 95° App 80°Diamond, Ext 95° App Sleeve 80° Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.6 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 2 mm
Cutting Edge Length (L): 12.9 mm
Min. Turning Feed (ft(min)): 0.1 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
Grade: TT8080
