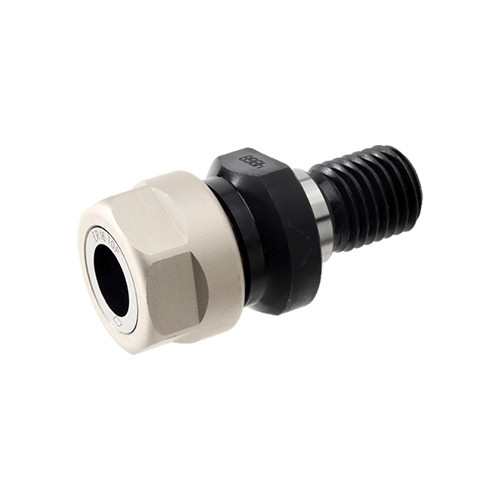

DIN 6499 ER collet chucks with T-FLEXTEC modular adaptations
Additional information
Weight
0.0830 kg
barcode

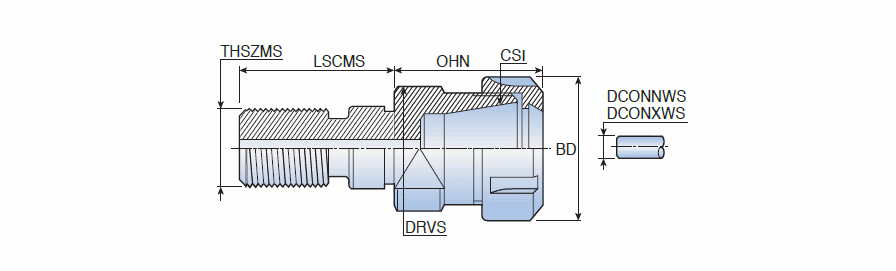

Additional Information
Connection Size (CSI): ER16
Connection Diameter Minimum Workpiece Side (DCONNWS): 0.5 mm
Body Diameter (BD): 22 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 10 mm
Connection Thread Nominal Size Machine Side (THSZMS): M10
Measurement Type: Metric
Shank Length (LS): 20 mm
Body Material: Steel
Application:, T FLEXTEC, Unit: M
Nose Length: 38.1 mm
