Taegutec CFR D240-A45

Product Code: 6113907

$544.73$495.21 Ex. GST

Product Code: 6113907 SKU 6113907 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

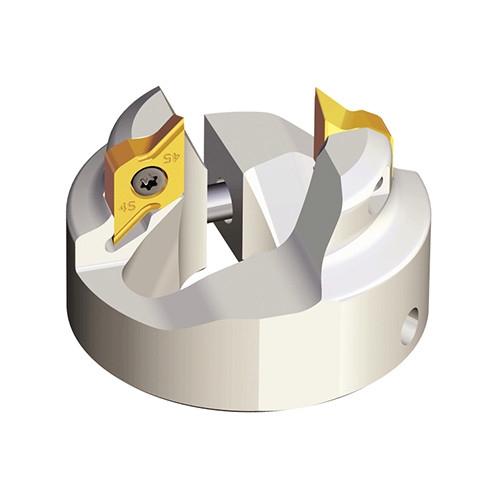

Chamfering ring for DRILLRUSH, TOPDRILL & T-DRILL holders of drilling & chamfering in one operation

Additional information

Weight 0.4100 kg
Dimensions
barcode
Additional Information

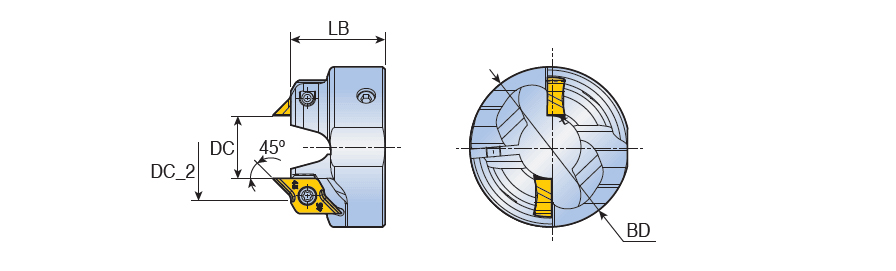

Body Diameter (BD): 47 mm
Application:, Chamfering, Cutting Diameter Maximum (DCX): 24.9 mm
Measurement Type: Metric
Cutting Diameter Minimum (DCN): 24 mm
PackSize: 1
Overall Length (OAL): 24 mm
Body Material: Steel
Master Insert Identification (MIID): ‎CRNG 0802-45CD
Unit: M
Shank Type: Round

Brand

Taegutec
