Taegutec CNGA 120408 AB20

Product Code: 5700012

$25.71$23.37 Ex. GST

Product Code: 5700012 SKU 5700012 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

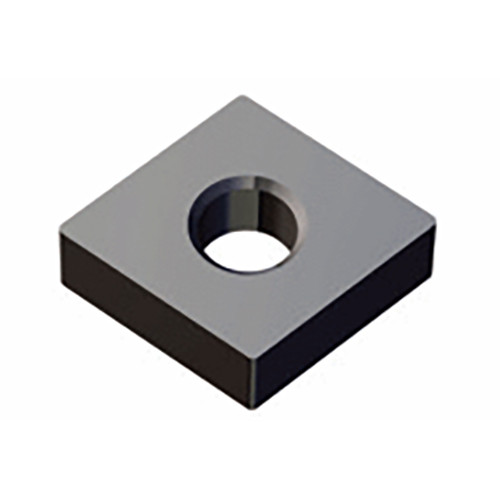

Taegutec CNGA 120408 AB20

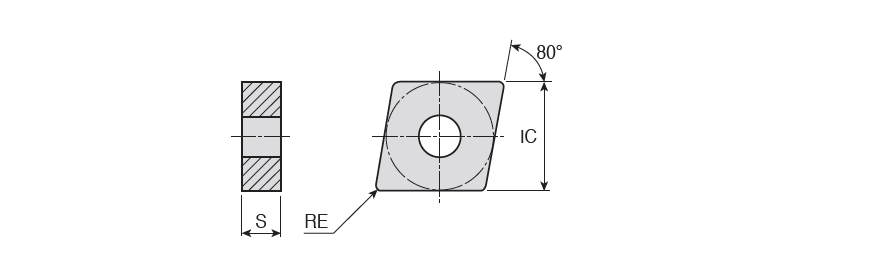

Taegutec CNGA 120408 AB20 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Negative 80° Rhombic ground Ceramic inserts with hole for cast iron and hardened steel machining

Additional information

Weight	0.0042 kg
barcode
Additional Information	Applicable Material:, Hard Materials, Fixing Hole Diameter (D1): 5.16 mm Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 12.9 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Ceramic Body Material: Carbide Coating: TiCN+Al2O3 Unit: M Grade: AB20

Brand

Taegutec
