Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec CNGA 120408 T6-WZ AS10
$37.88$34.44 Ex. GST

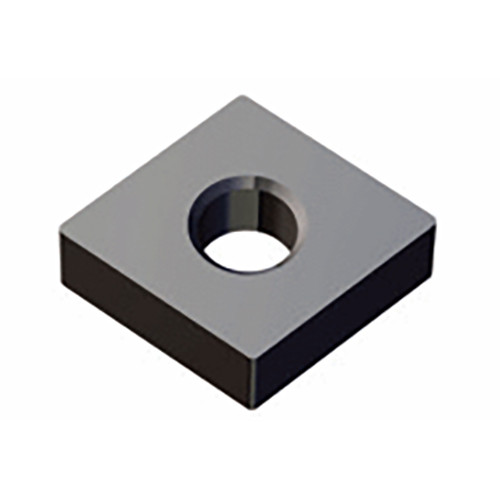

Negative 80° Rhombic ground Ceramic inserts with hole for cast iron and hardened steel machining
Applicable Material:, Cast Iron, Fixing Hole Diameter (D1): 5.16 mm Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 12.9 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Ceramic Body Material: Carbide Coating: Si3N4 Unit: M Grade: AS10
