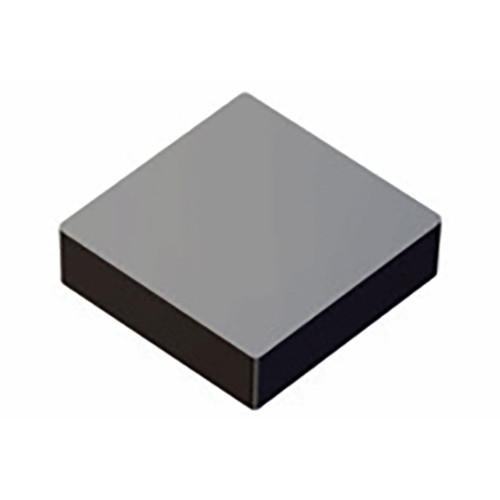

Taegutec CNGN 120404 AB30

Applicable Material:, Cast Iron, Hard Materials, Grade: AB30
Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 0.1 mm
Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 3 mm
Cutting Edge Length (L): 12.9 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.15 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Ceramic
Body Material: Carbide
Coating: TiCN+Al2O3
Unit: M
