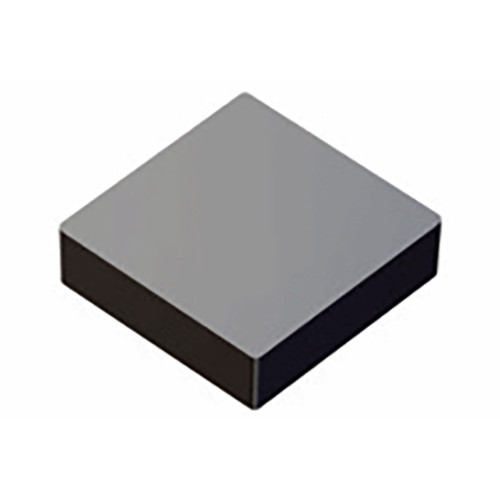

Taegutec CNGN 120412 E TC3030

Product Code: 6182030

$40.04$36.40 Ex. GST

Product Code: 6182030 SKU 6182030 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec CNGN 120412 E TC3030

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Negative 80° Rhombic ground Ceramic inserts without hole for cast iron & hardened steel machining

Additional information

Weight	0.0039 kg
barcode
Additional Information	Applicable Material:, Super-Alloys / Titanium, Min D.O.C.: 0.1 mm Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Depth of Cut Maximum (APMX): 3 mm Corner Radius (RE): 1.2 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Cutting Edge Length (L): 12.9 mm Max. Turning Feed (ft(max)): 0.25 mm/rev Insert Thickness (S): 4.76 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 12.7 mm Body Material: Carbide Cutting Edge Material: Ceramic Unit: M Grade: TC3030

Brand

Taegutec
