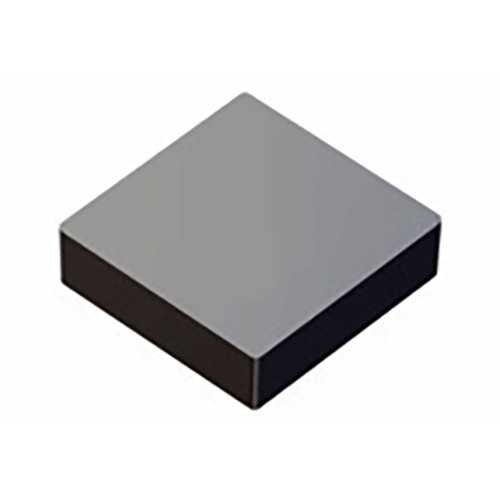

Taegutec CNGN 120412 T6 TC3020

Applicable Material:, Super-Alloys / Titanium, Min D.O.C.: 0.1 mm
Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Depth of Cut Maximum (APMX): 3 mm
Corner Radius (RE): 1.2 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Cutting Edge Length (L): 12.9 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Insert Thickness (S): 4.76 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 12.7 mm
Body Material: Carbide
Cutting Edge Material: Ceramic
Unit: M
Grade: TC3020
