Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec CNMD 250924 HT TT8125B
$116.93$106.30 Ex. GST

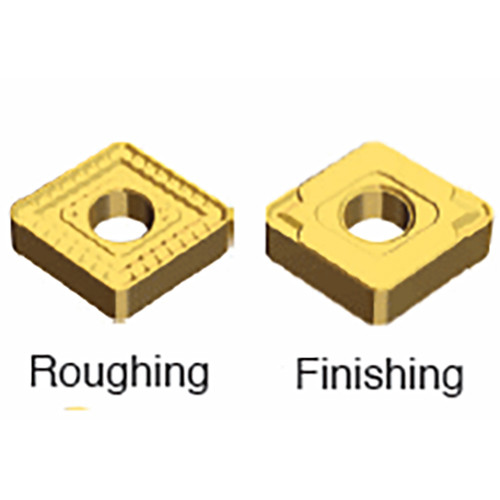

Double-sided negative 80° Rhombic inserts of heavy roughing on Top side with low cutting force & finishing on Bottom side
Applicable Material:, Steel, Grade: TT8125B Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Min D.O.C.: 5 mm Corner Radius (RE): 2.4 mm Depth of Cut Maximum (APMX): 12 mm Cutting Edge Length (L): 25.79 mm Min. Turning Feed (ft(min)): 0.55 mm/rev Insert Thickness (S): 9.52 mm Max. Turning Feed (ft(max)): 1.3 mm/rev Inscribed Circle Diameter (IC): 25.4 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
$151.09$137.35 Ex. GST
$448.97$408.15 Ex. GST
$20.27$18.43 Ex. GST
$15.66$14.24 Ex. GST
$13.54$12.31 Ex. GST
