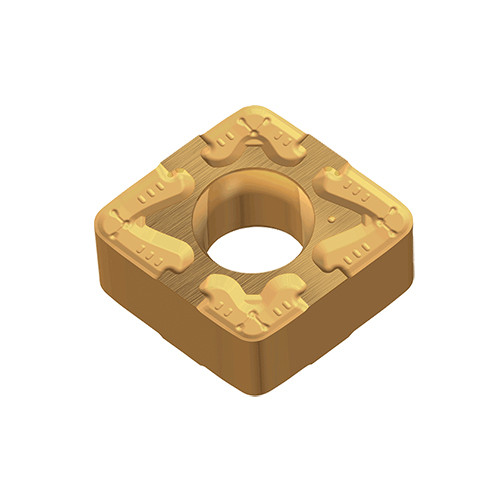

Taegutec CNMG 090404 WA TT8115B

Product Code: 6241256

$16.24$14.76 Ex. GST

Product Code: 6241256 SKU 6241256 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Negative 80° Rhombic RHINOTURN Wiper inserts for high feed rate and excellent surface finishing

Weight	0.0049 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8115B Application:, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 0.25 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 2.5 mm Cutting Edge Length (L): 12.9 mm Min. Turning Feed (ft(min)): 0.08 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.25 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
