Taegutec CNMG 120404 MT TT8020

Product Code: 5515731

$22.65$20.59 Ex. GST

Product Code: 5515731 SKU 5515731 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

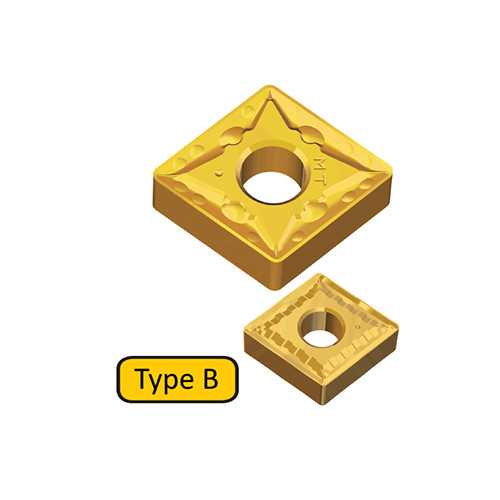

Taegutec CNMG 120404 MT TT8020

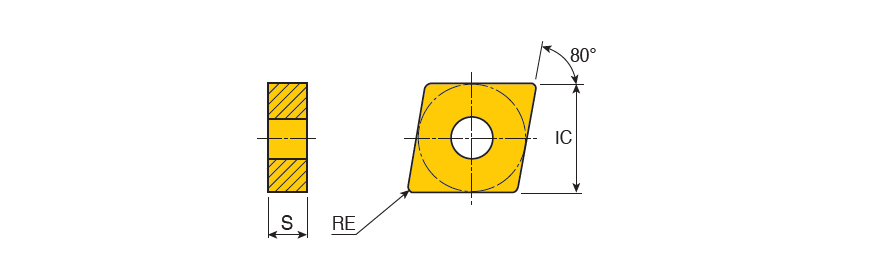

Taegutec CNMG 120404 MT TT8020 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Negative 80° Rhombic inserts for medium rough applications of steel, cast iron & stainless steel

Additional information

Weight	0.0107 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 1 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 5 mm Cutting Edge Length (L): 12.9 mm Min. Turning Feed (ft(min)): 0.15 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.4 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN Unit: M

Brand

Taegutec
