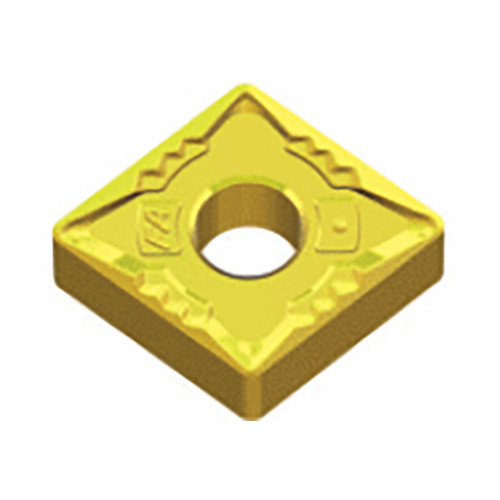

Taegutec CNMG 120408 FA CT3000

Description

Negative 80° Rhombic inserts for super-finishing on steels, stainless steels & heat resistant alloys with excellent chip control

Weight	0.0057 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: CT3000 Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 0.3 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 2 mm Cutting Edge Length (L): 12.9 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.25 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Cermet Body Material: Carbide Coating: Cermet Unit: M
