Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec CNMG 120408 KT TT7025
$21.57$19.61 Ex. GST

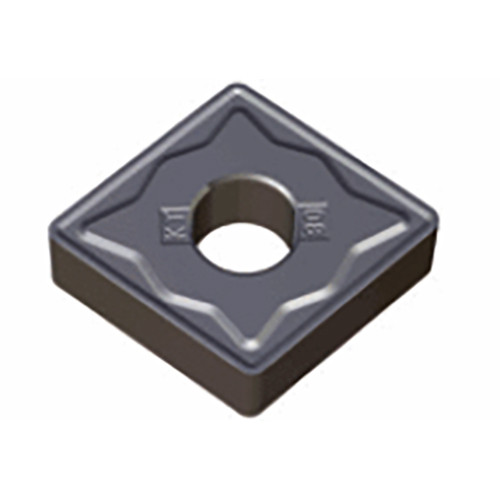

Negative 80° Rhombic inserts for roughing on cast irons and good tool life on interrupted conditions
Applicable Material:, Cast Iron, Grade: TT7025 Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 0.38 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 7 mm Cutting Edge Length (L): 12.9 mm Min. Turning Feed (ft(min)): 0.19 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.53 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN/Al2O3/TiN Unit: M
