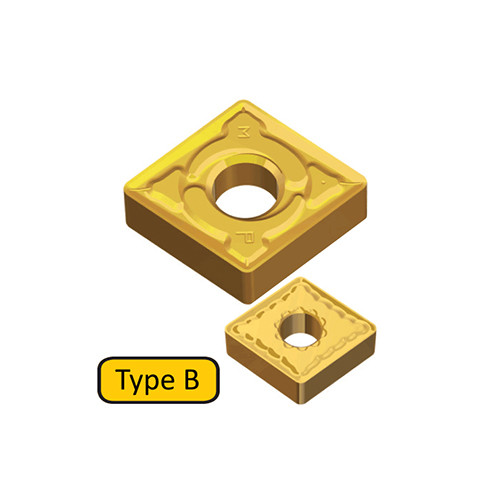

Taegutec CNMG 160612 MP TT8125B

Applicable Material:, Steel, Grade: TT8125B
Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 2.5 mm
Corner Radius (RE): 1.2 mm
Depth of Cut Maximum (APMX): 6 mm
Cutting Edge Length (L): 16.17 mm
Min. Turning Feed (ft(min)): 0.15 mm/rev
Insert Thickness (S): 6.35 mm
Max. Turning Feed (ft(max)): 0.5 mm/rev
Inscribed Circle Diameter (IC): 15.88 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
