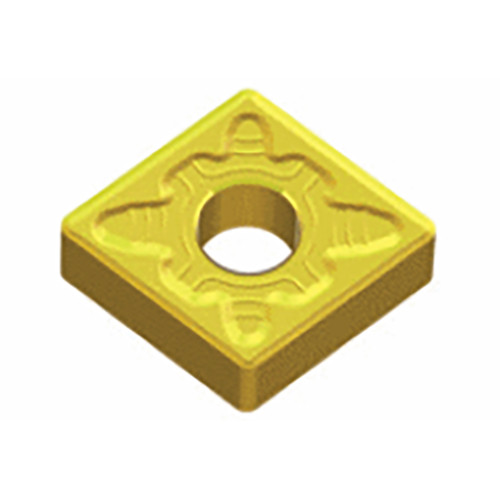

Taegutec CNMG 190608 EM TT5080

Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT5080
Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 0.5 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 8 mm
Cutting Edge Length (L): 19.3 mm
Min. Turning Feed (ft(min)): 0.13 mm/rev
Insert Thickness (S): 6.35 mm
Max. Turning Feed (ft(max)): 0.5 mm/rev
Inscribed Circle Diameter (IC): 19.05 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
