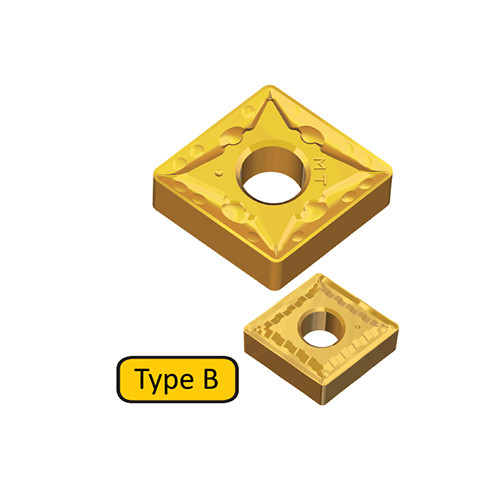

Taegutec CNMG 190608 MT TT8115B

Applicable Material:, Steel, Grade: TT8115B
Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 3 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 8 mm
Cutting Edge Length (L): 19.34 mm
Min. Turning Feed (ft(min)): 0.23 mm/rev
Insert Thickness (S): 6.35 mm
Max. Turning Feed (ft(max)): 0.55 mm/rev
Inscribed Circle Diameter (IC): 19.05 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
