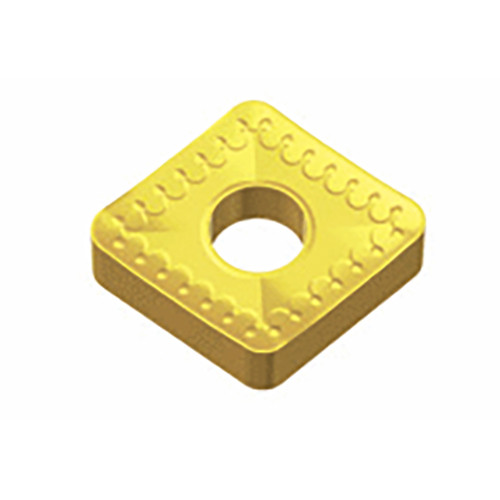

Taegutec CNMM 120408 RH TT8115B

Description

Negative single-sided 80° Rhombic inserts for roughing of steel, stainless steel & cast iron with very high strong rake geometry

Weight	0.0097 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8115B Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 2.5 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 6 mm Cutting Edge Length (L): 12 mm Min. Turning Feed (ft(min)): 0.3 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.7 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
