Taegutec CNMM 160624 RX TT8105B

Description

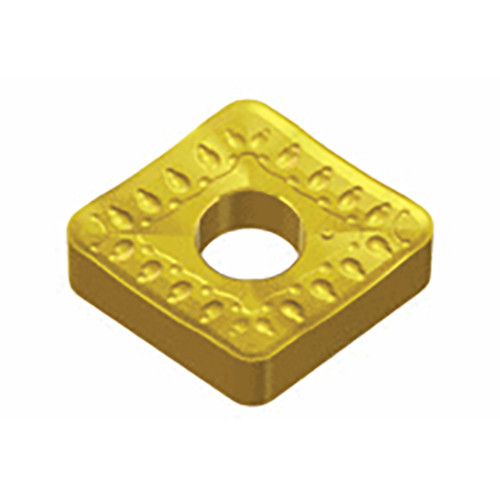

Single sided negative 80° rhombic inserts for semi heavy roughing of steel, stainless steel and cast iron with low cutting force

Weight	0.0202 kg
barcode

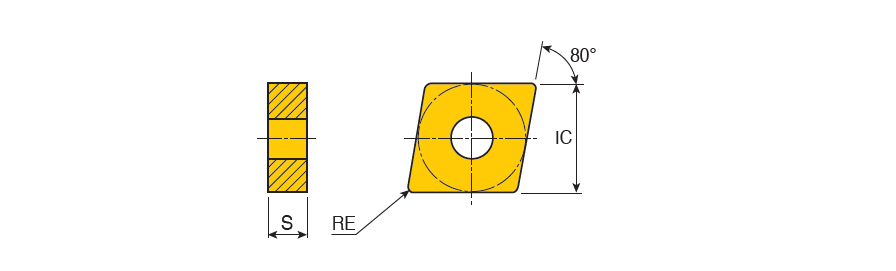

Additional Information	Applicable Material:, Steel, Grade: TT8105B Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 2 mm Corner Radius (RE): 2.4 mm Depth of Cut Maximum (APMX): 9 mm Cutting Edge Length (L): 16.12 mm Min. Turning Feed (ft(min)): 0.35 mm/rev Insert Thickness (S): 6.35 mm Max. Turning Feed (ft(max)): 1.2 mm/rev Inscribed Circle Diameter (IC): 15.88 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN-Al203-TiN Unit: M
