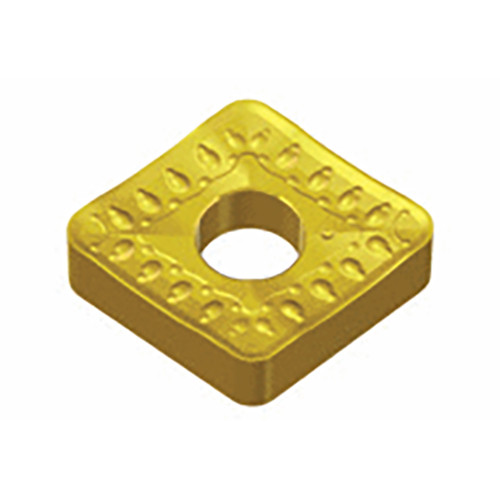

Taegutec CNMM 190612 RX TT8135B

Description

Single sided negative 80° rhombic inserts for semi heavy roughing of steel, stainless steel and cast iron with low cutting force

Weight	0.0125 kg
barcode

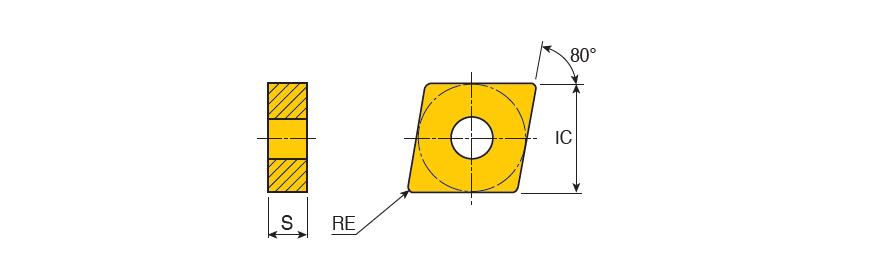

Additional Information	Applicable Material:, Steel, Grade: TT8135B Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 1 mm Corner Radius (RE): 1.2 mm Depth of Cut Maximum (APMX): 10 mm Cutting Edge Length (L): 19.3 mm Min. Turning Feed (ft(min)): 0.25 mm/rev Insert Thickness (S): 6.35 mm Max. Turning Feed (ft(max)): 0.7 mm/rev Inscribed Circle Diameter (IC): 19.05 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
