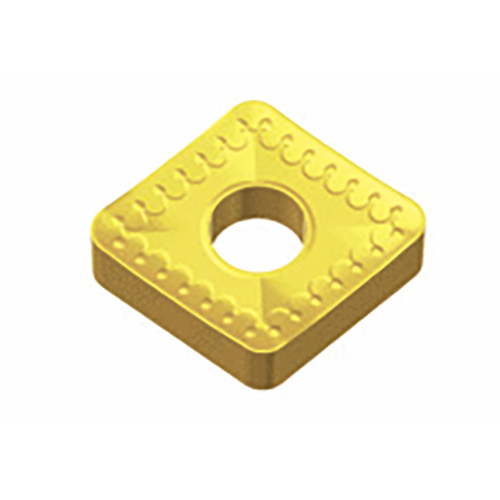

Taegutec CNMM 190616 RH TT9235

Description

Negative single-sided 80° Rhombic inserts for roughing of steel, stainless steel & cast iron with very high strong rake geometry

Weight	0.0286 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT9235 Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 4 mm Corner Radius (RE): 1.6 mm Depth of Cut Maximum (APMX): 9 mm Cutting Edge Length (L): 19.3 mm Min. Turning Feed (ft(min)): 0.45 mm/rev Insert Thickness (S): 6.35 mm Max. Turning Feed (ft(max)): 1 mm/rev Inscribed Circle Diameter (IC): 19.05 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al203+TiCN Unit: M
