Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec CNMM 190624 HT TT8115B
$47.66$43.33 Ex. GST

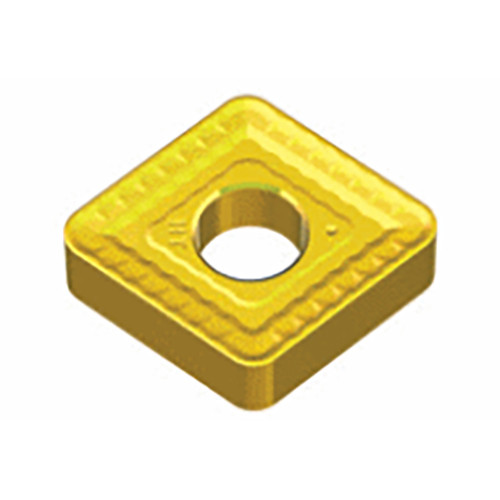

Negative Single-sided 80° Rhombic inserts for heavy roughing with low cutting force & excellent chip control
Applicable Material:, Steel, Grade: TT8115B Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 4 mm Corner Radius (RE): 2.4 mm Depth of Cut Maximum (APMX): 9 mm Cutting Edge Length (L): 16.8 mm Min. Turning Feed (ft(min)): 0.55 mm/rev Insert Thickness (S): 6.35 mm Max. Turning Feed (ft(max)): 1.2 mm/rev Inscribed Circle Diameter (IC): 19.05 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
