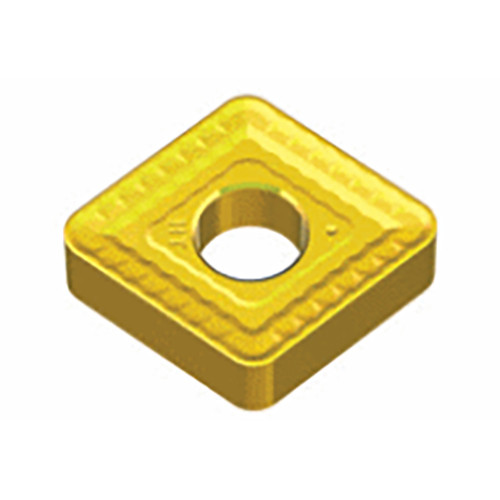

Taegutec CNMM 250724 HT TT9225

Description

Negative Single-sided 80° Rhombic inserts for heavy roughing with low cutting force & excellent chip control

Weight	0.0712 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT9225 Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 5 mm Corner Radius (RE): 2.4 mm Depth of Cut Maximum (APMX): 12 mm Cutting Edge Length (L): 25.79 mm Min. Turning Feed (ft(min)): 0.55 mm/rev Insert Thickness (S): 7.94 mm Max. Turning Feed (ft(max)): 1.3 mm/rev Inscribed Circle Diameter (IC): 25.4 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al203+TiCN Unit: M
