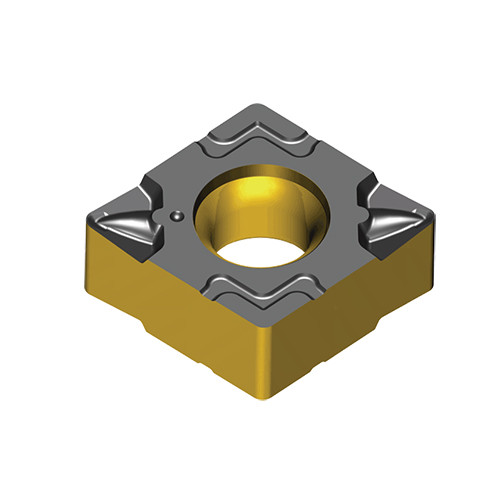

Taegutec CNMX 070304 FGP PV3010

Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: PV3010
Application:, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.3 mm
Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 2 mm
Cutting Edge Length (L): 7.11 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 3.18 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Inscribed Circle Diameter (IC): 7 mm
Measurement Type: Metric
Cutting Edge Material: Cermet
Body Material: Carbide
Coating: TiN
Unit: M
