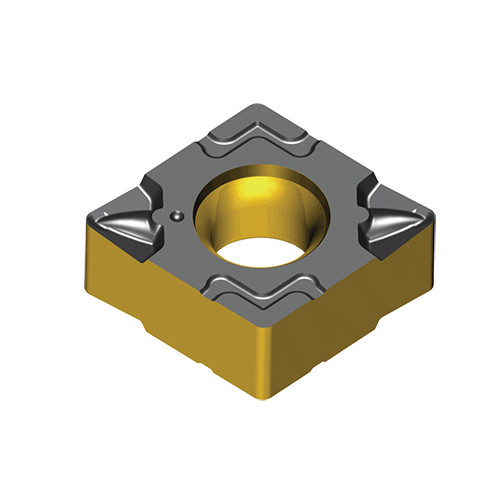

Taegutec CNMX 070308 FGP TT3020

Applicable Material:, Super-Alloys / Titanium, Grade: TT3020
Application:, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.4 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 2 mm
Cutting Edge Length (L): 7.11 mm
Min. Turning Feed (ft(min)): 0.08 mm/rev
Insert Thickness (S): 3.18 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Inscribed Circle Diameter (IC): 7 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: AlTiN+TiN
Unit: M
