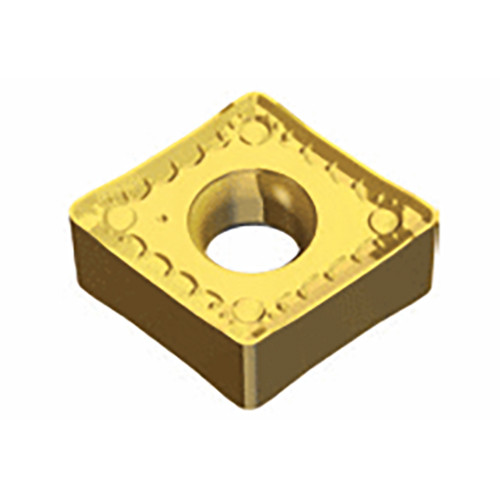

Taegutec CNMX 120512 HB TT8105B

Product Code: 6241744

$23.74$21.58 Ex. GST

Product Code: 6241744 SKU 6241744 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Double-sided negative 80° Rhombic inserts for semi-heavy turning

Weight	0.0102 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8105B Application:, Ext 75° App 100° Diamond, Ext 75° App Face 100° Diamond, Ext 95° App 80°Diamond, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 1.5 mm Corner Radius (RE): 1.2 mm Depth of Cut Maximum (APMX): 6 mm Cutting Edge Length (L): 12.9 mm Min. Turning Feed (ft(min)): 0.25 mm/rev Insert Thickness (S): 5.56 mm Max. Turning Feed (ft(max)): 0.8 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN-Al203-TiN Unit: M
