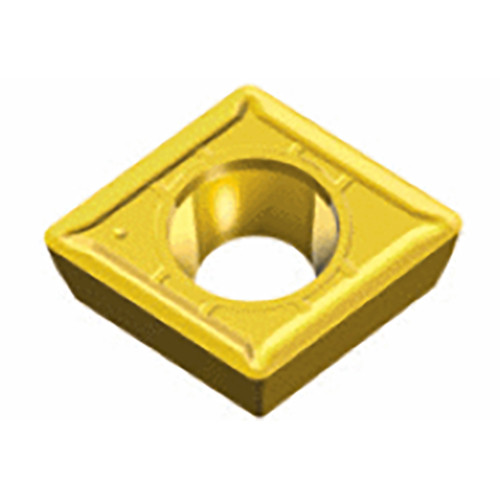

Taegutec CPMT 060204 PC TT7005

Product Code: 6116277

$14.53$13.21 Ex. GST

Product Code: 6116277 SKU 6116277 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive 80° Rhombic inserts for medium applications of wide variety of materials with 11° clearance angle & low cutting force

Weight	0.0022 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Grade: TT7005 Application:, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 0.3 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 2 mm Cutting Edge Length (L): 6.3 mm Min. Turning Feed (ft(min)): 0.06 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.18 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3 Unit: M
