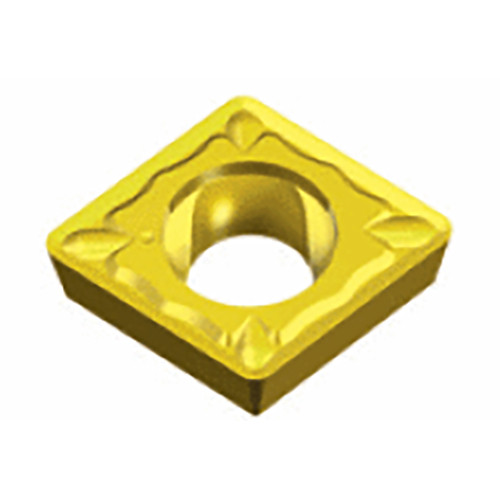

Taegutec CPMT 090304 FG CT3000

Description

Positive 80 Rhombic inserts for finish to medium light applications of steels & stainless steels with 11° clearance angle & excellent chip control

Weight	0.0027 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Cast Iron, Fixing Hole Diameter (D1): 4.4 mm Application:, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 0.4 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 2 mm Cutting Edge Length (L): 9.5 mm Min. Turning Feed (ft(min)): 0.07 mm/rev Insert Thickness (S): 3.18 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Cermet Body Material: Carbide Coating: Cermet Unit: M Grade: CT3000
