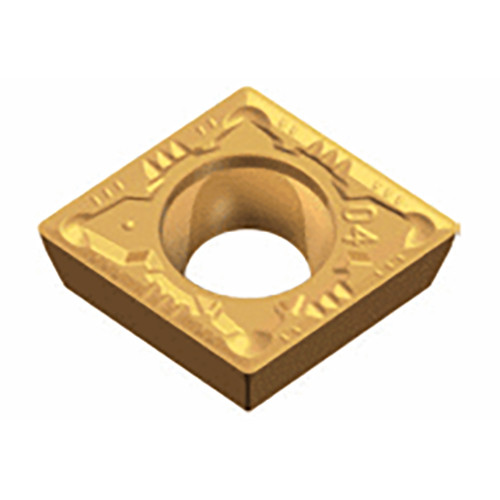

Taegutec CPMT 090304 FM TT5080

Product Code: 6155690

$16.54$15.04 Ex. GST

Product Code: 6155690 SKU 6155690 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive 80° Rhombic inserts for medium and semi-finishing machining of steels & stainless steels with low cutting force & 11° clearance angle

Weight	0.0040 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT5080 Application:, Inserts, Int 95° App 80° Diamond, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 2.5 mm Cutting Edge Length (L): 0 mm Min. Turning Feed (ft(min)): 0.08 mm/rev Insert Thickness (S): 3.18 mm Max. Turning Feed (ft(max)): 0.25 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiAlN+TiN Unit: M
