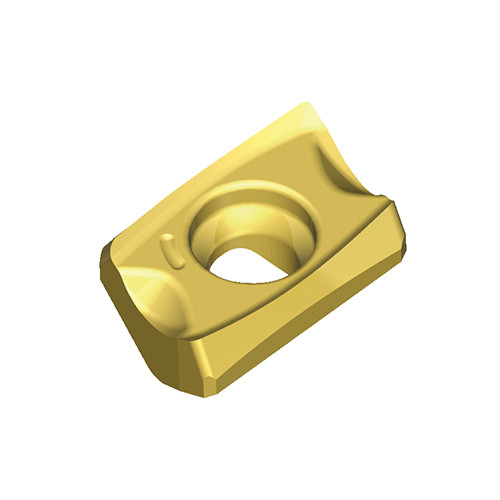

Taegutec CVHT 0502PNR-L TT9080

Product Code: 6319272

$22.81$20.74 Ex. GST

Product Code: 6319272 SKU 6319272 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Unique high positive ground inserts with very sharp two cutting edges and rigid V shape for light machining

Weight	0.0016 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.07 mm/tooth Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Cutting Edge Material: Carbide Corner Radius (RE): 0.2 mm Minimum Feed per Tooth (fz(min)): 0.03 mm/tooth Depth of Cut Maximum (APMX): 4 mm Number of Cutting Edges: 2 Insert Thickness (S): 2.6 mm Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT9080 Unit: M
