Taegutec DCET 0702003 R-GW TT9020

Product Code: 5517986

$33.78$30.71 Ex. GST

Product Code: 5517986 SKU 5517986 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec DCET 0702003 R-GW TT9020

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

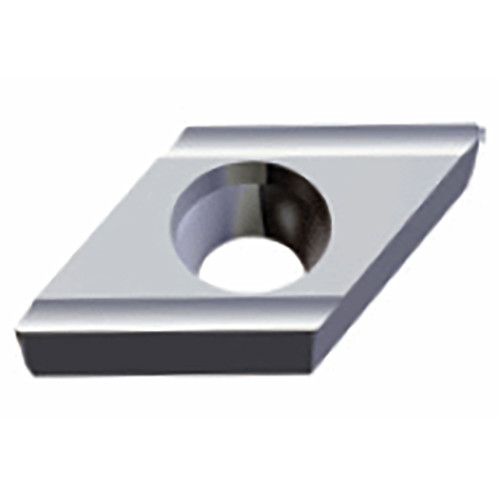

Precision positive ground 55° Rhombic inserts with wiper geometry of good surface finish for super-finishing of small parts in steel, stainless steel & alloy steel

Additional information

Weight	0.0024 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Grade: TT9020 Application:, Ext 93° App 55°Diamond, Ext 93° App Shift 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Y Axis holders, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.03 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 7.7 mm Min. Turning Feed (ft(min)): 0.02 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.15 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN Unit: M

Brand

Taegutec
