Taegutec DCET 070208 R-GF TT9020

Product Code: 6137157

$33.78$30.71 Ex. GST

Product Code: 6137157 SKU 6137157 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec DCET 070208 R-GF TT9020

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

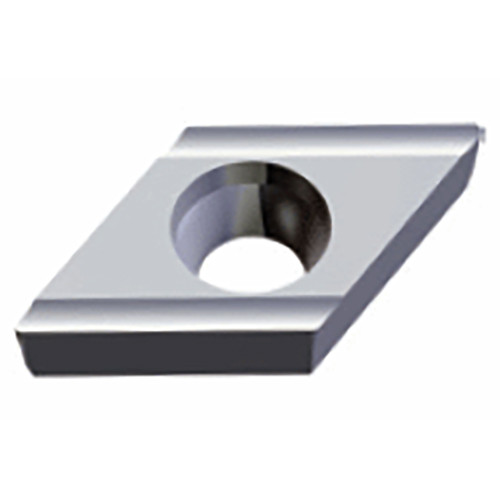

Precision positive ground 55° Rhombic inserts with sharp high rake cutting edge for small parts super finishing of steel, stainless steels & alloy steel

Additional information

Weight	0.0023 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Grade: TT9020 Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Shift 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Y Axis holders, Min D.O.C.: 0.3 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 7.7 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN Unit: M

Brand

Taegutec
