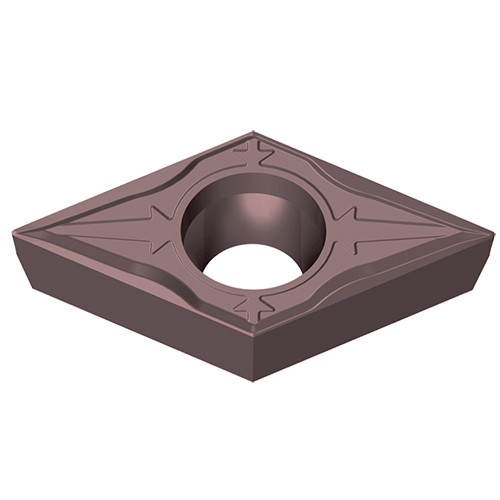

Taegutec DCGT 070201M SM-F TT4430

Description

Positive ground 55° rhombic inserts with sharp cutting edge for general purpose of small parts on swiss type automatic lathes

Weight	0.0123 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT4430 Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Shift 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Y Axis holders, Min D.O.C.: 0.2 mm Corner Radius (RE): 0.1 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 7.75 mm Min. Turning Feed (ft(min)): 0.02 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.12 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Multi AlTiCrN Unit: M
