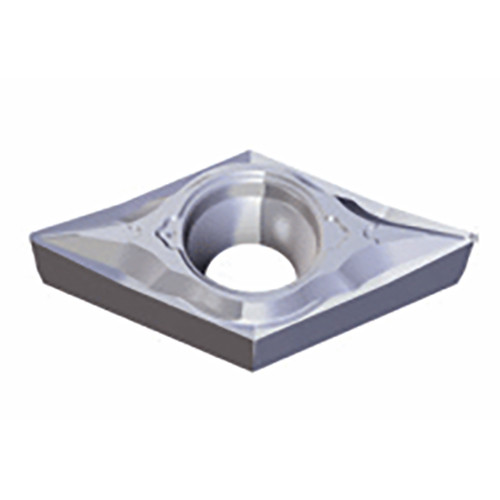

Taegutec DCGT 070204 SA TT5080

Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT5080
Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Shift 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Y Axis holders, Min D.O.C.: 0.1 mm
Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 1.5 mm
Cutting Edge Length (L): 7.75 mm
Min. Turning Feed (ft(min)): 0.03 mm/rev
Insert Thickness (S): 2.38 mm
Max. Turning Feed (ft(max)): 0.2 mm/rev
Inscribed Circle Diameter (IC): 6.35 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
