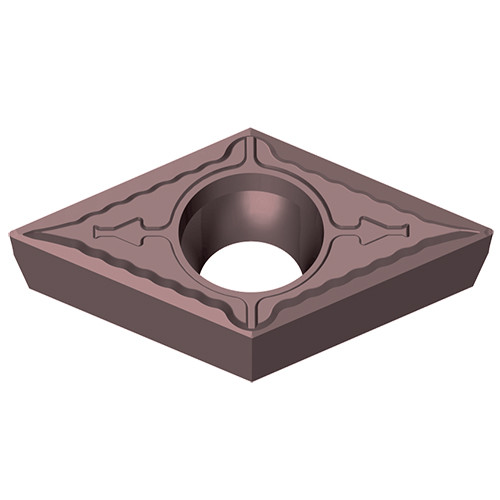

Taegutec DCGT 11T302M SH-E TT4430

Description

Positive ground 55° rhombic inserts with sharp cutting edge (small honed edge) for high depth machining of small parts on swiss type automatic lathes

Weight	0.0059 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT4430 Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Shift 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Y Axis holders, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.2 mm Depth of Cut Maximum (APMX): 3.5 mm Cutting Edge Length (L): 11.6 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.15 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Multi AlTiCrN Unit: M
