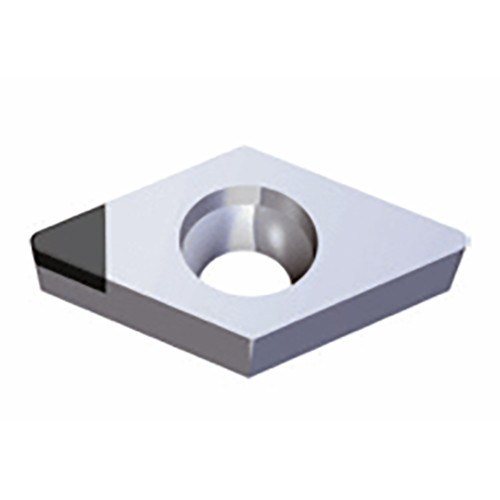

Taegutec DCGW 11T304 LS TB650

Applicable Material:, Hard Materials, Grade: TB650
Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Shift 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Y Axis holders, Min D.O.C.: 0.05 mm
Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 0.5 mm
Cutting Edge Length (L): 11.6 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 3.97 mm
Max. Turning Feed (ft(max)): 0.3 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: PCBN
Body Material: Carbide
Coating: Uncoated
Unit: M
