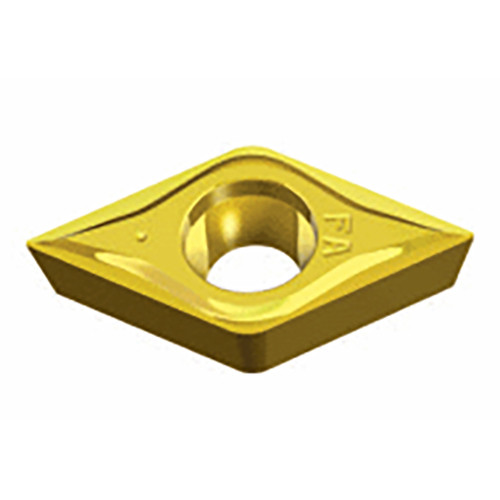

Taegutec DCMT 11T302 FA TT9215

Description

Positive 55° Rhombic inserts for super-finishing of steels, stainless steels & exotic materials with 7° clearance angle and excellent chip control

Weight	0.0059 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Fixing Hole Diameter (D1): 4.4 mm Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Shift 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Y Axis holders, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.2 mm Depth of Cut Maximum (APMX): 2 mm Cutting Edge Length (L): 11.6 mm Min. Turning Feed (ft(min)): 0.03 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.15 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al203+TiCN Unit: M Grade: TT9215
