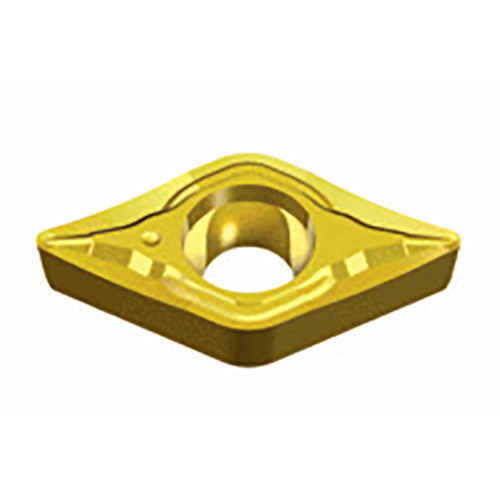

Taegutec DCMT 11T304 FG TT8125B

Description

Positive 55° Rhombic inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control

Weight	0.0057 kg
barcode
Additional Information	Applicable Material:, Steel, Fixing Hole Diameter (D1): 4.4 mm Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Shift 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Y Axis holders, Min D.O.C.: 0.6 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 11.6 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.25 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M Grade: TT8125B
