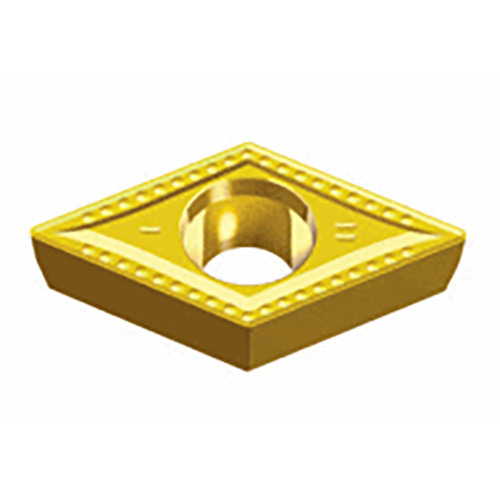

Taegutec DCMT 11T312 MT TT5100

Applicable Material:, Steel, Stainless Steel, Fixing Hole Diameter (D1): 4.4 mm
Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Shift 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Y Axis holders, Min D.O.C.: 1.5 mm
Corner Radius (RE): 1.2 mm
Depth of Cut Maximum (APMX): 3 mm
Cutting Edge Length (L): 11.6 mm
Min. Turning Feed (ft(min)): 0.17 mm/rev
Insert Thickness (S): 3.97 mm
Max. Turning Feed (ft(max)): 0.35 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
Grade: TT5100
