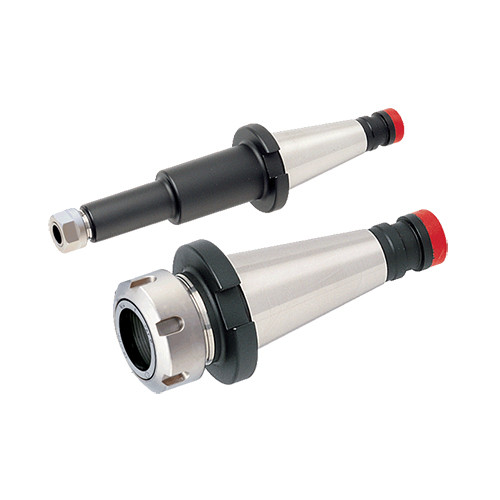

DIN 6499 ER collet chucks with DIN 2080 taper shanks
Additional information
Weight
0.5500 kg
barcode
Additional Information
Connection Size (CSI): ER32
Connection Diameter Minimum Workpiece Side (DCONNWS): 2 mm
Body Diameter (BD): 50 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 20 mm
Body Length Maximum (LBX): 55 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 30 mm
Connection Diameter Workpiece Side (DCONWS): 0 mm
Connection Thread Nominal Size Machine Side (THSZMS): M18X1.5
Body Material: Steel
Application:, DIN 2080, Unit: M
Nose Length: 45.4 mm
