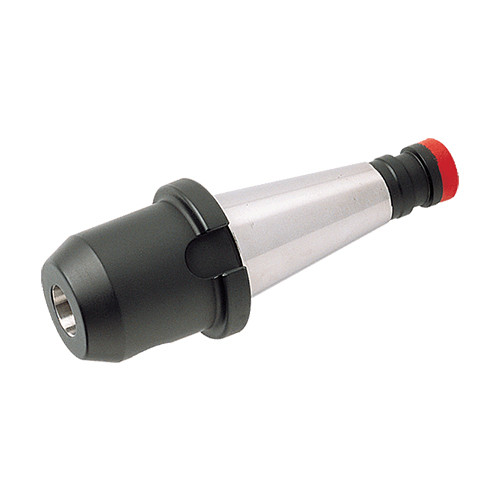

DIN6359 / DIN 1835 form B Weldon end mill holders with DIN 2080 taper shanks
Additional information
Weight
2.4400 kg
barcode
Additional Information
Shank Type: Weldon
Measurement Type: Metric

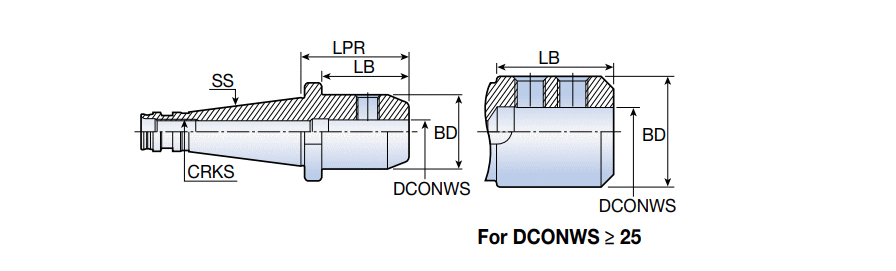

Connection Diameter Workpiece Side (DCONWS): 32 mm
Connection Retention Knob Thread Size (CRKS): M16
Body Diameter (BD): 72 mm
Shank Size (SS): 40 mm
Body Length Maximum (LBX): 80 mm
Body Material: Steel
Nose Length: 68.4 mm
Unit: M

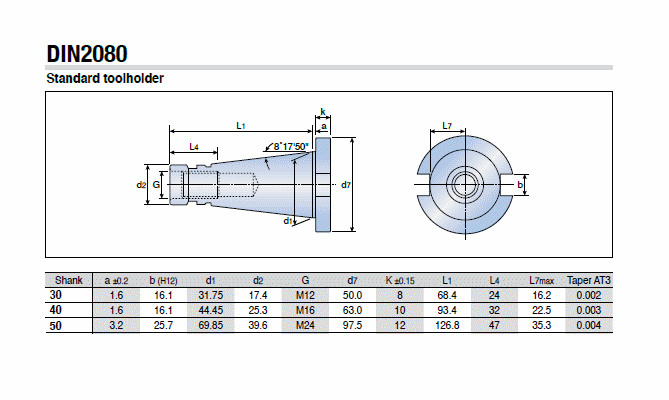

Application:, DIN 2080
