Taegutec DIN2080 40 MT3X 65

Product Code: 4601908

$228.23$207.48 Ex. GST

Product Code: 4601908 SKU 4601908 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

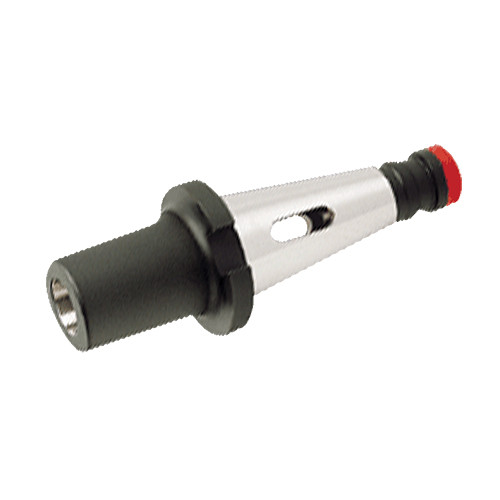

DIN 6383 Morse taper adapter with DIN 2080 taper shanks

Additional information

Weight 1.0600 kg
barcode

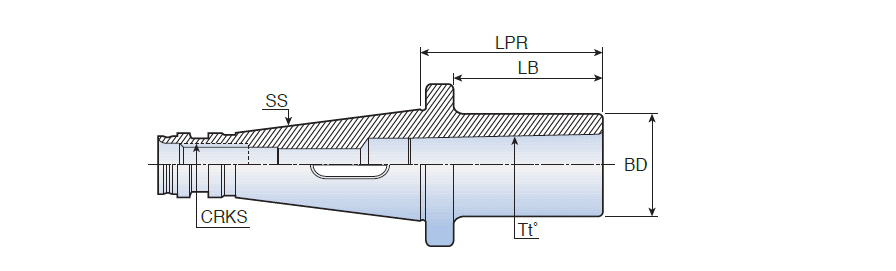

Additional Information

Body Half Taper Angle (BHTA): MT3 Degrees
Connection Retention Knob Thread Size (CRKS): M16
Shank Size (SS): 40 mm
Connection Diameter Workpiece Side (DCONWS): 40 mm
Measurement Type: Metric
Functional Length (LF): 65 mm
Application:, Morse Taper, Body Material: Steel
Protruding Length (LPR): 53.4 mm
Unit: M

Brand

Taegutec
