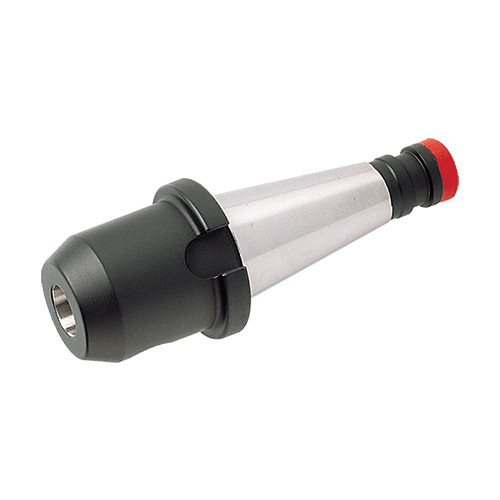

DIN6359 / DIN 1835 form B Weldon end mill holders with DIN 2080 taper shanks
Additional information
Weight
3.1250 kg
barcode
Additional Information
Shank Type: Weldon
Measurement Type: Metric

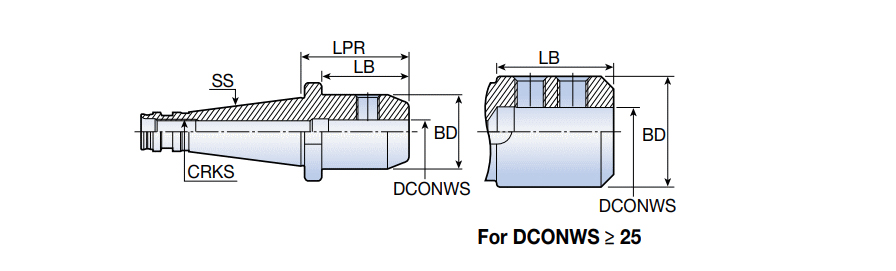

Connection Diameter Workpiece Side (DCONWS): 12 mm
Connection Retention Knob Thread Size (CRKS): M24
Body Diameter (BD): 42 mm
Shank Size (SS): 50 mm
Body Length Maximum (LBX): 63 mm
Body Material: Steel
Nose Length: 47.8 mm
Unit: M

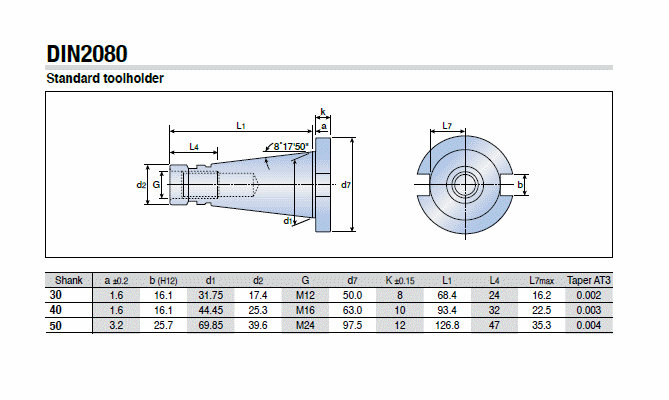

Application:, DIN 2080
